Insulation parts Your location:home > Products

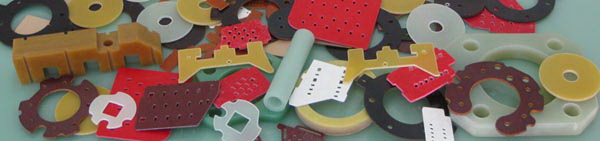

  Insulation parts are made from insulating sheets, rods and tubes by grinding, planer, milling, drilling and carving into parts of mechanical and electrical equipments.

  Phenolic paper insulation parts: good electrical and mechanical applications, level E in heat resistance, PFCP207(XPC)could be processed in normal temperature, high machining efficiency, and could be processed into parts in one time, widely used as insulation parts in electrical field.
  Phenolic cotton cloth insulation parts: High mechanical applications, level E in heat resistance, suitable as big parts which has high mechanical and electrical applications, widely used in mechanical, electrical, medical, aviation and automotive industries.
  Epoxy glass cloth insulation parts: High mechanical applications, humidity resistance, level E or F in heat resistance, available in high voltage, temperature and humidity conditions.
  Polyester glass fiber insulation parts: High electrical applications, flame resistance, arc resistance, level F in heat resistance, widely used as structural parts in high electrical equipments.

No.

Item

Unit

Value

Phenolic paper Laminated Materials

Phenolic cotton cloth Laminated Materials

Epoxy glass cloth Laminated Materials

Polyester glass fiber Laminated(Molded) Materials

1

Type of main production


3021,3021B,PFCP201,PFCP202,PFCP203,PFCP206,PFCP207,XPC,HP2061

3025,3025B,PFCC201,PFCC202,PFCC203,PFCC204,hgw2082,hgw2083,C,L

3240,3240B,EPGC201,EPGC202,EPGC203,G-10,FR-4,hgw2082,hgw2082.5,hgw2083

SMC,DMC(BMC),GPO-3,HM2471

2

Major constituents:
Phenolic resin
Epoxy resin
Polyester resin
Insulation paper
Cotton cloth
Glass cloth
Glass yarn
Others


%


50


50




52



48




42



58




30



30
40

3

Humidity resistance

Better

Bad

Goog

Good

4

Density

g/cm3

1.35~1.45

1.35~1.45

1.75~1.95

1.75~1.85

5

Temperature index

120

120

155

155

6

Bending strength perpendicular to lamination ≥

MPa

80~135

90~110

340

90~259

7

Bonding strength ≥

N

3200~3600

3200~3600

8

Electrical strength 3mm in thickness ≥

kV/mm

7.7~13

0.5~4.0

10.2

12~13

9

Insulation resistance after impregnated in water ≥

5×101~1×103

5×101

5×104

10

Arc resistance

NO

NO

NO

YES

11

Flame resistance

NO

NO

YES(EPGC202)

YES

12

Water absorption 3mm in thickness ≤

mg

90~550

162~249

22

20
